Diameter measuring wheel
This system includes a diameter measuring wheel, sensors, display and accessories. Hall switches and incremental optical encoders calculate the diameter relationship between the measuring wheel and measured object, allowing support roller and tyre diameter measurement.
Category:
Rotary-kiln inspection
Contact telephone:
13349867738
Product enquiries
Recommended products
Detailed description
This system includes a diameter measuring wheel, sensors, display and accessories. Hall switches and incremental optical encoders calculate the diameter relationship between the measuring wheel and measured object, allowing support roller and tyre diameter measurement.
(1) Equipment characteristicsPending confirmation
① The source compares conventional horizontal roller distance instruments with ±1cm accuracy and a 0°C-80°C operating range against an imported measuring wheel claiming ±0.01mm accuracy, a -80°C-350°C range and extreme operation up to 500°C.Pending confirmation
2. Updated components make the equipment lighter, simpler and more accurate, changing from integrated to bundled circuitry.
(2) UsePending confirmation

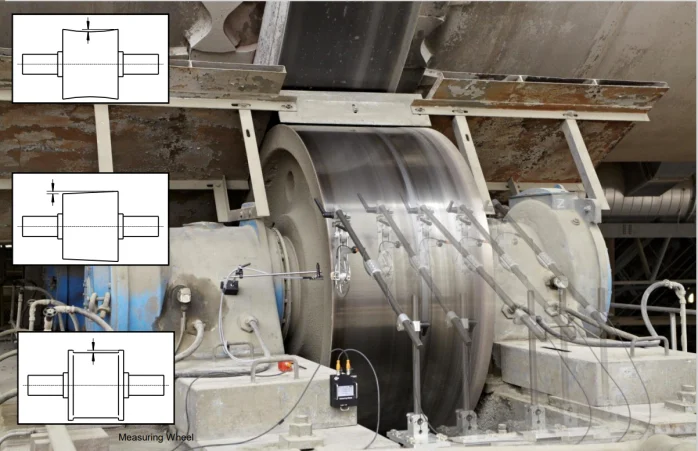

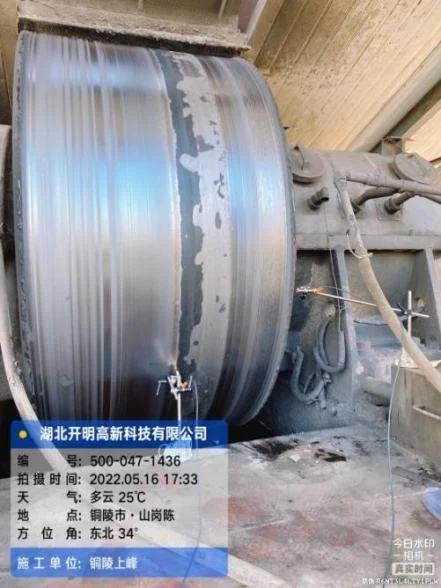

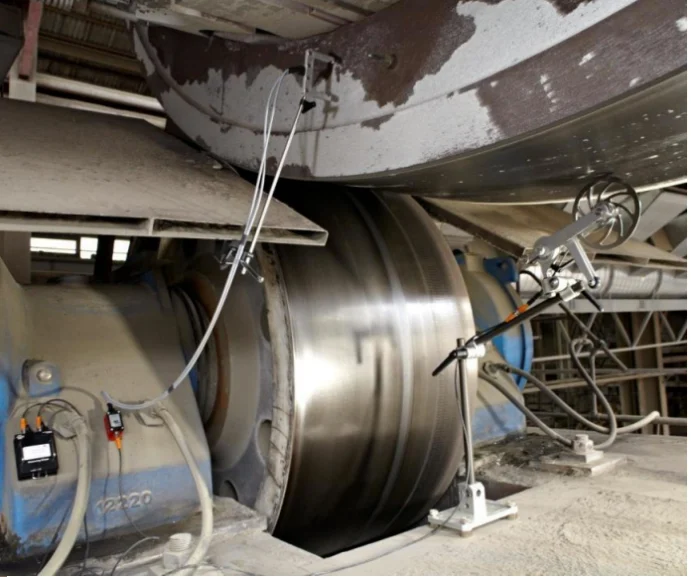

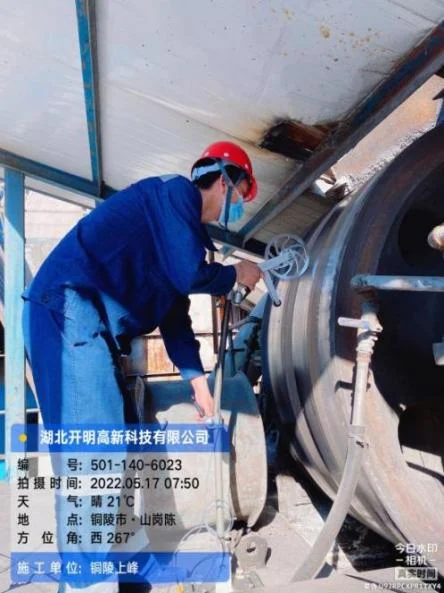

The system measures the distance travelled by a measuring wheel on a roller or tyre. A Hall switch identifies one complete revolution and a laser circuit records its distance. A conversion formula calculates diameter. Five equally spaced measurements combined with wear data improve measurement precision.
Keywords: Diameter measuring wheel
